Vape tank size matters less than fit. Three things decide whether a tank works: the thread, the tank’s diameter, and the coil’s wattage range. Most tanks and box mods use the 510 thread, so most tanks screw on. But a tank that screws on can still overhang a narrow mod or sit outside its coil’s wattage range. [6] Standard tanks hold 3ml to 8ml; some markets cap them at 2ml. [2]

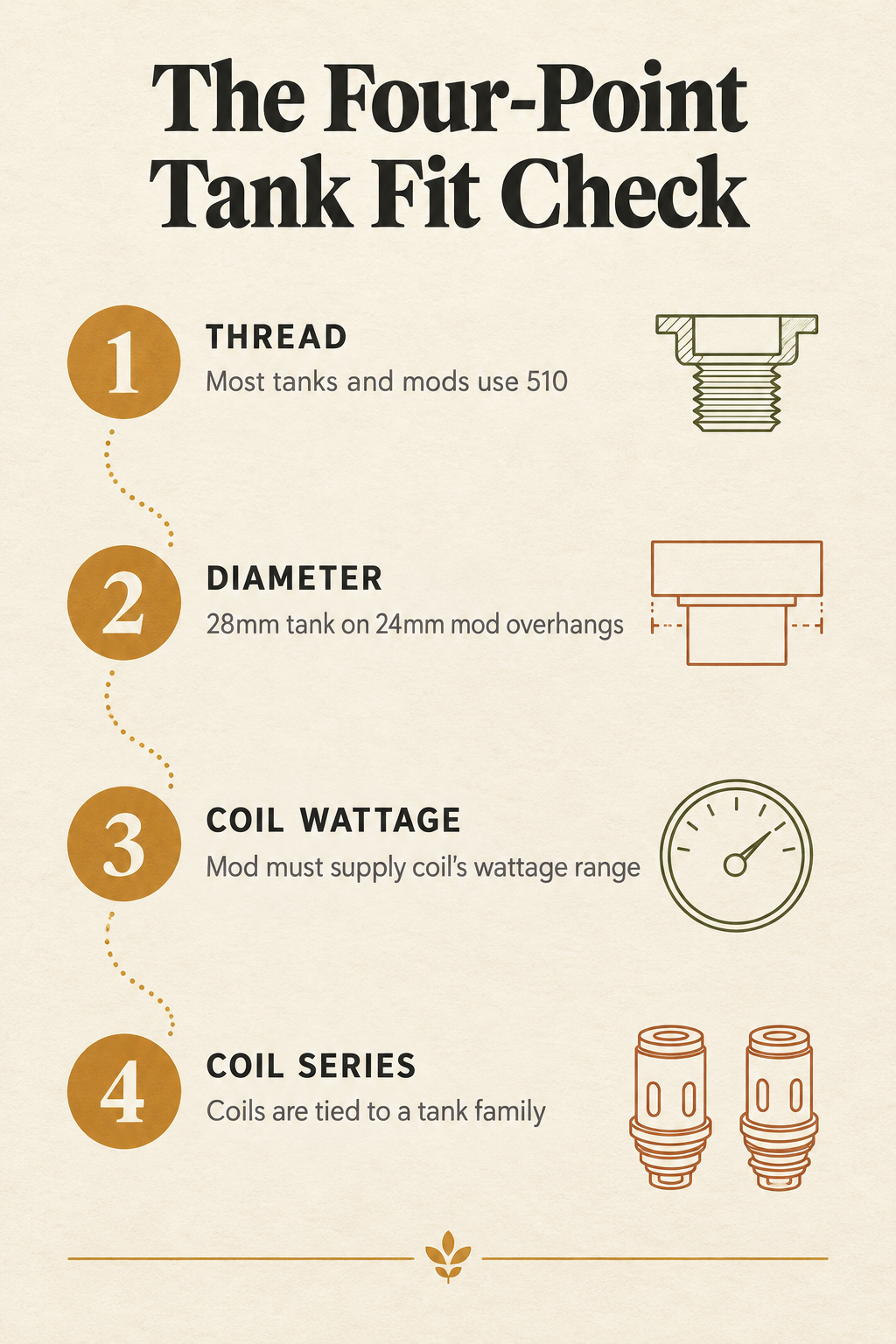

What Should You Check First When Buying a Vape Tank?
Four checks decide whether a tank works on your device, and they go in a set order. Each one takes a minute and each one saves a return if it fails. Run them in this order before you look at colour, glass style, or price. [6]
Thread comes first because it decides whether the tank attaches at all. Most tanks and box mods use the 510 thread, so this check usually passes without much thought. [2] If you are browsing the Vaporizers or Accessories ranges, read the connection line on the listing before anything else.
Diameter comes second because you can spot the problem before you fill anything. A tank wider than the top of the mod overhangs. A 28mm tank on a mod that tops out around 24mm will hang past the edges on both sides. [6] That figure lives in the specifications, not in the product photos.
Coil wattage comes third, because a mod has to supply the range the coil is rated for. VAPORESSO quotes a 0.15 ohm coil rated for 75-90W, and a 1.2 ohm mouth-to-lung coil that runs around 8-12W. [2] A tank screwed onto a mod that cannot reach the coil’s range is a pairing that will not run the way the listing describes.
Coil series comes last, and it is the check people skip. A tank only takes the coil family it was built for, so other series do not swap in. [3] If travel and storage matter as much as fit, a bundled travel setup like the Stündenglass Modül + Dok Deluxe Travel Set – Gray Glass shows what a complete kit looks like.
- Thread: confirm the tank’s connection matches the mod. Most tanks and box mods use the 510 thread, so this usually passes. [2]
- Diameter: find the mod’s maximum supported tank width in millimetres. A 28mm tank on a 24mm ceiling will overhang. [6]
- Coil wattage: check that the mod reaches the bottom of the coil’s rated range, not just the top.
- Coil series: match the coil family the tank lists before you buy a pack, since other series will not fit. [3]
What Does the 510 Thread on a Vape Tank Actually Mean?
The 510 thread (also written 510) is a threaded connection format used between parts of vape hardware, most often a cartridge and a battery. [8] It is not a brand and it is not run by a single standards body. It is a family of parts that share a thread size, which is why so many pieces screw together.
A CORESTA technical report describes the connection as roughly 7mm in diameter with a 0.5mm thread pitch. [8] Retail explainers often describe the same connector as a 5mm core with 10 threads, then give the M7 x 0.5 specification in the next paragraph. [9] Both descriptions point at the same part. The shorthand is just loose.
The name is where things get fuzzy. The popular story says 510 comes from the measurements. A technical write-up notes that story is not well supported, and that the dimensions are more use than the origin tale. [8] Take the numbers and skip the folklore.
It helps to see the connector in context. If you want the wider picture, What Are the Different Types of Vape Accessories and How Do I Choose Them? covers the accessory categories that sit around a tank, and What Is a Vape Atomizer, and When Should You Replace It? covers the atomizer side of the same hardware. For a direct comparison of tank and cartridge formats, see Vape Tank vs Cartridge: Which One Is Better for You?.
- Connector diameter: roughly 7mm, per the CORESTA technical report quoted in coverage of the format. [8]
- Thread pitch: 0.5mm, which is what the M7 x 0.5 specification describes. [9]
- Thread count: often quoted as 10 threads, alongside the looser 5mm-and-10-threads shorthand. [9]
- Center pin: roughly 2.0mm on the retail explainers that publish the measurement. [9]
- Connection format: male thread on the cartridge or tank, female socket on the battery or mod. [9]
Are Vape Tanks Interchangeable Between Brands?
Usually yes for the thread and no for the complete fit. That one sentence answers most of the question, and the rest is the detail behind it. [6]
The thread is the part that travels between brands. Because most tanks and box mods use the 510 thread, a tank from one maker will normally screw onto a mod from another. [2] The connection is common enough that this is a fair default assumption.
Everything above the thread is where brands stop agreeing. Diameter, coil series, coil wattage range, glass fit, and fill method are all model-specific. A 510 marking identifies a connector family. It does not prove that a specific tank and mod pairing works. [8]
Pod systems are the clear exception. A pod uses a brand-proprietary connection, so one brand’s pod will not fit another brand’s device, though some brands share pods across a model range. [6] Some devices are also built as one piece rather than a tank on a mod, such as the Pulsar Barb Flower Electric Pipe Kit.
- What carries over: the 510 thread, so most tanks physically attach to most mods. [2]
- What does not carry over: tank diameter, which is set per model and decides overhang. [6]
- What does not carry over: coil series and the wattage range that goes with it. [2]
- What really does not carry over: pods, which are brand-specific and often model-specific even inside one brand. [6]
- The cautious reading of a 510 label: it names a connector family, so check the maker’s own specs for the exact pairing. [8]
| Part of the setup | Carries over between brands? | What to check |
|---|---|---|
| Thread | Usually yes | Both pieces use the 510 thread |
| Tank diameter | No | The mod’s maximum supported width in millimetres |
| Coil series | No | The coil family the tank lists |
| Coil wattage range | No | The mod has to reach the coil’s rated range |
| Pods | No | Brand-specific, and often model-specific |
How Much E-Liquid Does a Vape Tank Hold?
Standard e-liquid tanks commonly hold 3ml to 8ml. [2] That is a range, not a category rule, and it is a more useful answer than a single number.
The other figure you will see is 2ml. Tanks sold in some markets are limited to 2ml to meet local rules, so the same model can carry two capacity numbers on two different listings. [1]
Listings also get specific, which is more useful than any category average. One VAPORESSO tank is quoted at 3ml, ships with a 5ml spare glass tube, and measures 22.4mm across and 51.7mm tall. [2] Those figures describe one product, so confirm them on the page for the tank you are buying.
Capacity only matters for a tank you refill yourself. If you are comparing finished devices rather than swappable tanks, an option like the Randy’s Zinspo Vaporizer sits in a different category and takes the refill question off the table.
- 3ml to 8ml: the common range for standard e-liquid tanks. [2]
- 2ml: the version sold where local rules cap tank capacity. [1]
- 3ml with a 5ml spare glass: one real listing, where the installed glass sets the figure. [2]
- 22.4mm by 51.7mm: the diameter and height quoted for that same tank, useful for checking mod fit. [2]
- Where to confirm: the specifications block on the exact product page, not the category page or a search snippet.
Why Is the Same Tank Sold as 2ml, 3ml, and 5ml?
Three separate things change the number, and shoppers read the difference as a mistake. It is not. The same model really can appear at 2ml, 3ml, and 5ml, and each listing can be correct for the version it sells.
The first reason is regional. UK guidance from the MHRA restricts e-cigarette tanks to no more than 2ml, caps nicotine-containing refill containers at 10ml, and limits nicotine strength to 20mg/ml. [1] Manufacturers publish a 2ml version for that market next to larger versions for other markets.
The second reason is glass. One listed tank ships at 3ml with a 5ml spare glass tube, so the glass fitted to the tank sets the capacity. [2] Change the tube and the number changes without changing the tank.
The third reason is labelling. The capacity on the box may describe the pre-installed glass only. [2] If you buy replacement glass, match it to the exact tank model, then re-check the stated capacity for the glass you are actually running.
- Regional rule: 2ml is a market limit, not a sign of a lesser tank. [1]
- Glass swap: a 3ml tank with a 5ml spare glass tube holds different volumes depending on which tube is fitted. [2]
- Box labelling: the printed figure may cover the pre-installed glass only. [2]
- Replacement parts: match new glass to the exact model, since near-identical tanks can take different tubes.
- What to confirm: the glass currently fitted, then the capacity stated for that glass on the listing.
| Why the number differs | What changes | What to confirm |
|---|---|---|
| Regional rule | A 2ml market version sits beside larger ones | Which version the listing sells |
| Glass swap | A 3ml tank with a 5ml spare tube holds either volume | Which glass is fitted right now |
| Box labelling | The printed figure may cover the pre-installed glass only | The capacity stated for that glass |
Is a Bigger Tank Better, or Just Heavier?
Bigger is neither better nor worse by default. Capacity mainly decides how often you refill, and every extra millilitre has a size cost attached to it. [10]
A larger tank means fewer refills. That is the whole benefit, and for someone who uses a device through the day it is a real one. [2]
The cost shows up in the hand and the pocket. Bigger tanks tend to be taller and heavier, and a larger glass section makes the whole setup more awkward to carry. More glass also means more of the device is a part that can chip.
So pick capacity from use rather than from a spec sheet. Count how many refills you actually do in a day, then ask whether a taller device is fine to carry.
- Around 2ml: pocket-friendly, but you will refill more often through a long day.
- Around 3ml to 5ml: a middle ground that covers most single-day use without much bulk. [2]
- Around 6ml to 8ml: fewer refills, with a taller and heavier device to carry. [2]
- Pocket test: a bigger glass section is the part that decides whether it rides comfortably in a jacket. [10]
- Deciding factor: refills per day against how much bulk you will accept, not a ranking of capacities.
What Is the Difference Between a Vape Tank and a Pod?
A tank is a refillable, modular part. It takes replaceable coils, can often take different glass, and screws onto a mod with a 510 thread. [3]
A pod system is a different shape of product. It uses its own brand-specific pods, and typical pod volume is small, with one example holding 2ml. [7]
That difference drives the compatibility answer. A tank is interchangeable at the thread and model-specific above it. A pod is model-specific from the start, though some brands share pods across a model range. [6]
The practical test is what you replace when something wears out. On a tank you replace the coil. On a pod you replace the pod, and the pod has to come from the brand that made the device.
- Connection: a tank uses the 510 thread; a pod uses a brand-proprietary fitting. [6]
- Wear part: a tank takes replaceable coils, while a pod is usually replaced as a whole unit. [3]
- Capacity: a tank commonly holds 3ml to 8ml, while a pod example holds 2ml. [2] [7]
- Cross-brand fit: a tank often fits another brand’s mod, and a pod rarely fits another brand’s device. [6]
- Parts to buy ahead: coils for a tank, spare pods for a pod system.
| Feature | Tank | Pod |
|---|---|---|
| Connection | 510 thread | Brand-proprietary fitting |
| Wear part | Replaceable coil | The pod itself |
| Typical capacity | 3ml to 8ml | Around 2ml in the example given |
| Cross-brand fit | Often fits another brand’s mod | Rarely fits another brand’s device |

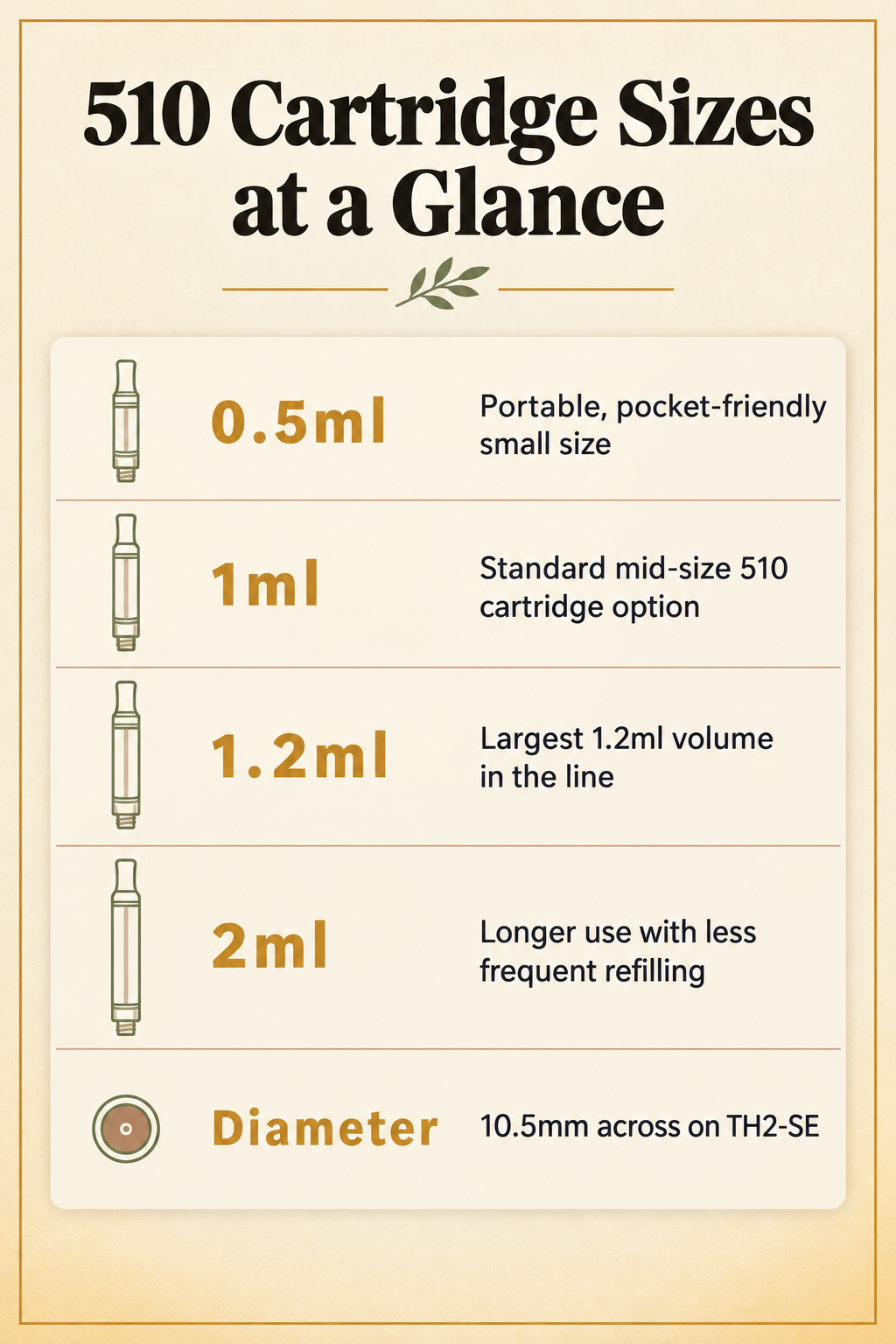

How Many ml Is a 510 Cartridge Tank?
Roughly 0.5ml to 2ml, which is a different scale from an e-liquid tank. The word tank covers both, and that is where most of the confusion starts.
CCELL lists a 510-thread borosilicate cartridge at 0.5ml, 1ml, and 1.2ml, measuring 10.5mm across and 52mm to 66mm tall depending on volume, at 1.4 ohm. [4] Those numbers describe a small, sealed unit, not a refillable vessel.
Its standard cartridge sizes are 0.5ml, 1ml, and 2ml. The company positions 0.5ml as the portable, pocket-friendly option, and larger sizes as the choice for longer use with less frequent refilling. [5]
None of those figures compare with the 3ml to 8ml that standard e-liquid tanks commonly hold. [2] If you are shopping for a mod tank and the listing says 1ml, check whether you are looking at a cartridge instead.
- 0.5ml: the smallest standard 510 cartridge size, positioned for portability. [5]
- 1ml: a mid-size cartridge option, measuring 62mm tall in the TH2-SE line. [4]
- 1.2ml: the largest volume in that cartridge line, at 66mm tall. [4]
- 2ml: the largest standard cartridge size, positioned for longer use with fewer refills. [5]
- 10.5mm across and 1.4 ohm: the diameter and resistance shared across those cartridge volumes. [4]
Frequently Asked Questions
Are vape tanks interchangeable between brands?
Usually yes for the thread and no for the complete fit. Most tanks and box mods use the 510 thread, so most tanks screw onto most mods. The tank diameter still has to sit inside the mod’s top without overhanging, and the mod still has to deliver the coil’s recommended wattage range. Pod systems are the exception, because pods are brand-specific.
What does 510 mean on a vape tank or cartridge?
It names a threaded connection format used between vape hardware parts. A CORESTA technical report describes it as roughly 7mm in diameter with a 0.5mm thread pitch. Retail explainers often describe a 5mm core with 10 threads and then give the M7 x 0.5 specification in the same paragraph, so read the shorthand as shorthand rather than a settled definition.
How many ml is a 510 cartridge tank?
A 510 oil cartridge is much smaller than an e-liquid tank. CCELL lists one 510-thread borosilicate cartridge at 0.5ml, 1ml, and 1.2ml, and its standard cartridge sizes as 0.5ml, 1ml, and 2ml. Those figures do not compare with the 3ml to 8ml that standard e-liquid tanks commonly hold.
Why is the same tank sold as 2ml and 5ml?
Two reasons, usually both at once. UK guidance restricts e-cigarette tanks to no more than 2ml, so a manufacturer publishes a 2ml version alongside larger versions for other markets. Separately, some tanks ship with a spare glass tube, so the installed glass changes the capacity and the number on the box may describe the pre-installed glass only.
Do I need new coils when I change tanks?
Yes, in practice. A tank’s listing names the coil series it takes, and other series do not swap in. Coils are also rated for a wattage range, so confirm the mod can deliver that range before buying, and buy coils for the tank family you actually own.
How do I choose a vape cartridge tank volume?
Match the volume to how long you want between refills. CCELL positions 0.5ml as the portable, pocket-friendly size and larger sizes such as 2ml for longer use with fewer refills. A 510 cartridge is a much smaller unit than an e-liquid tank, so read the volume and dimensions on the listing rather than assuming tank figures carry over.
What Should You Confirm Before You Order a Vape Tank?
Write down four things before you pay: the thread, the tank’s diameter in millimetres, the coil’s wattage range, and the coil series the tank takes. If all four line up with your mod, the tank fits, and the rest is preference.
Then choose capacity from how you use the device. Count your refills per day, weigh that against a taller body and more glass, and pick a size you will not resent carrying. Where the same model appears at 2ml, 3ml, and 5ml, check which glass is fitted and which version the listing sells.
If you are restocking coils and glass at the same time, Treehouse Lifestyle offers free shipping on orders $150+.
