The Puffco Peak Pro 3DXL chamber is the larger replacement chamber for the Peak Pro line. Its bowl is rated 78% larger than the standard 3D chamber. That extra size is added as depth rather than width, so the footprint and connection stay the same [1][4]. It fits every Peak Pro model, it needs updated firmware, and it does not fit the New Peak.
This guide covers what the deeper bowl changes in daily use and how to check your device will take the part. It covers whether to buy the chamber alone or a kit that already includes one. It also separates the numbers Puffco publishes from the numbers retailers repeat.
What is the Puffco Peak Pro 3DXL chamber?
The 3DXL is a replaceable ceramic chamber. It holds the load and heats it inside a Peak Pro. It is an upgrade or a spare part, not a device on its own. Puffco lists the chamber and an XL Joystick cap in the box, and notes that the Peak Pro itself is sold separately [1].
The naming is messy, and that causes real confusion. Puffco calls it a chamber. Leafly calls the same part an atomizer and also a hash oven. Retailers often just call it a bowl. On top of that, 3DXL and 3D XL are the same product name, so either spelling leads to the same part [6].
Inside, the chamber heats from its side walls. Embedded traces and temperature sensors do the work, rather than a base element alone [3]. The 3DXL keeps that side-wall layout and builds it in a larger format, which is why its heating description sounds identical to the standard part.
People arrive at this part for two reasons. Some need a replacement because a chamber stopped working. Others already own a Peak Pro with the smaller standard 3D chamber and want the bigger bowl. Both paths sit inside the Dab Rigs side of our catalog, and the Puffco parts specifically live under Puffco Accessories. The standalone part we stock is the Puffco 3DXL Chamber (Black).
One detail is worth knowing before you shop: the chamber is a wear item that comes out with a simple twist. Checking which chamber is fitted now takes less time than reading the product page.
- Chamber, not a device: it holds the load, and the Peak Pro base is not included.
- One part, several names: chamber, atomizer, hash oven and bowl all point to it, and 3DXL matches 3D XL.
- What ships: the 3DXL chamber plus an XL Joystick cap.
- Heating layout: side-wall traces and embedded temperature sensors, not a base-only element.
- Why people buy it: as a replacement part, or as an upgrade from the smaller standard 3D chamber.
How much bigger is the 3DXL chamber than the standard 3D chamber?
Puffco states that the 3DXL bowl is 78% larger than the standard Peak Pro 3D chamber [1]. The same figure appears on the support page and in press coverage, so it is consistent across sources rather than a single marketing line [2][6].
Puffco also rates the 3DXL at up to 2x more vapor than the standard 3D chamber on the same device [1]. Read that as the manufacturer’s rating and nothing more. It is not an independent lab measurement, and it is not a verdict on which part is better.
The more useful question is where the extra volume goes. Reviewers who measured the part describe the increase as depth rather than width. They put the 3DXL close to double the depth of the standard chamber, while chamber width stayed the same across Peak Pro generations [4][8]. That is why a 3DXL drops into the same opening as a standard chamber.
Then there is the number Puffco does not publish. The product page and the support page describe capacity only as 78% larger, and neither gives a gram rating [1][2]. A third-party listing that quotes a specific gram capacity is giving its own estimate. Do not read those figures as manufacturer specs, and ask where a precise gram number came from before you weigh it.
If you want the wider product family in view first, read What Is Puffco and How Do the Peak, Peak Pro, and Proxy Compare?. If you are new to concentrate gear altogether, What Is a Dab Rig and How Do You Use One? starts at the beginning, and E-Rig vs Traditional Dab Rig: Which Should You Choose? covers the cordless-versus-glass question. We also stock the Puffco Peak Pro 3D XL Replacement Chamber – LE Full Black if you want the same chamber in a different finish.
- Start with the manufacturer percentage: 78% larger than the standard 3D chamber, stated on both the product page and the support page.
- Find where the volume goes: depth, not chamber width, so the footprint and connection stay the same.
- Note the second rating: up to 2x more vapor is Puffco’s own figure, not an independent measurement.
- Note what is missing: Puffco publishes no gram rating at all.
- Discount third-party gram figures, since any specific capacity number in a listing is the seller’s estimate.

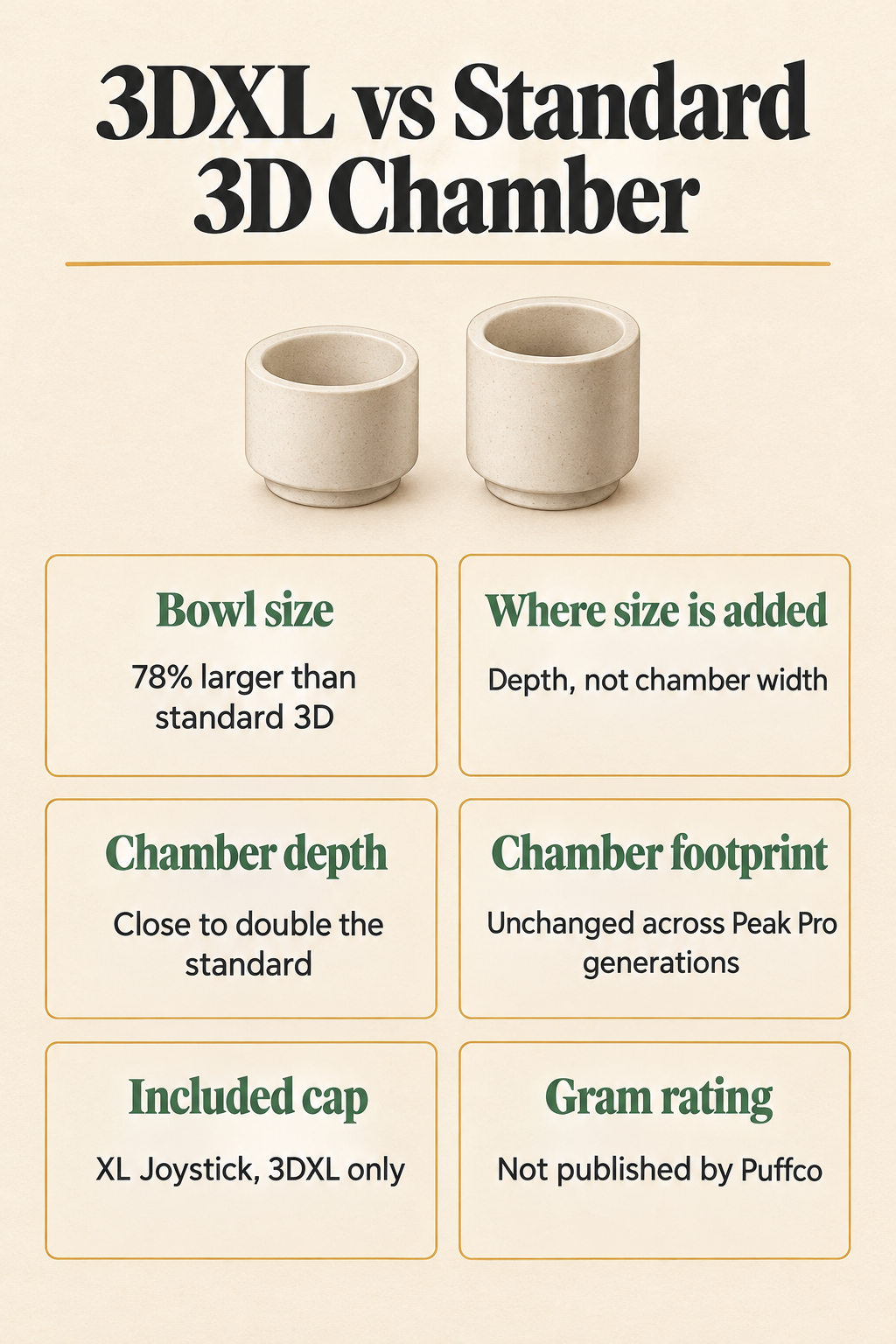

| Spec | Standard 3D chamber | 3DXL chamber |
|---|---|---|
| Bowl size | Standard | 78% larger, per Puffco |
| Added capacity | Baseline | Depth, not width |
| Chamber depth | Standard | Close to double |
| Footprint and connection | Peak Pro fitting | Same across Peak Pro models |
| Included cap | Oculus puck or ball-cap insert | XL Joystick, 3DXL only |
| Gram rating | Not published | Not published |
What changes when you load a deeper 3DXL bowl?
A deeper well takes more material before the load sits near the rim. Puffco frames the result as fuller loads landing with less reclaim. It pairs the chamber with the XL Joystick so the cap reaches down into the extra depth [1].
Reviewer testing puts the reclaim difference down to distance. Material in a deeper chamber has further to travel before it can reach the air holes. More of it stays in the bowl instead of moving toward the openings [4]. Leafly reports the same effect from the spillover side, noting that the deeper chamber keeps overflow out of the device’s internal vapor path [6].
The build changes too. The 3DXL coil is thicker than the coil in the standard 3D chamber [4], and the chamber still heats from its side walls. That is the same arrangement the standard chamber uses, just scaled up [3]. Nothing about the heating method changes; only the size of the heated area does.
Now the honest downside. Reviewers report that the 3DXL overpowers very small loads, and that they refit the standard 3D chamber when they want a short, small session [5]. That makes load size the deciding factor between the two parts, not a ranking of one over the other. If you usually load a small amount at a time, the standard chamber matches your habit more closely.
The deeper bowl also changes how forgiving a fast draw is, because material sits lower in the well. If you are comparing device formats more broadly, Vape Pen vs Box Mod: Which Is Right for You? covers another slice of the market.
- Fuller loads: more material sits below the rim before the level gets close to the top.
- Reclaim path: material has further to travel before it can reach the air holes.
- Spillover: the deeper chamber is reported to keep overflow out of the internal vapor path.
- Coil: the 3DXL coil is thicker than the standard 3D chamber coil.
- Small loads: tiny dabs are reported to be overpowered by the larger bowl, so some owners refit the standard chamber for short sessions.
- Heating method: side-wall heating, the same layout as the standard chamber in a larger size.
Does the 3DXL chamber drain the battery faster?
Yes, a larger heated area draws more from the battery. One reviewer ran both chambers on the same device. They measured roughly 3 to 4 percent of the battery per heavy session with the 3DXL, against a slower drain on the stock 3D chamber. That reviewer put the difference down to the greater surface area being heated and to the larger loads going in [5].
Base battery figures do not agree, and it is worth knowing that before you compare reviews. Puffco’s support page rates a fully charged Peak Pro at about 30 heating cycles [2]. A retailer comparison guide puts both Peak models at roughly 30 to 35 sessions per charge, depending on the temperature used [7]. Our own listing for the Peak Pro 3DXL eRig advertises roughly 40 sessions from a 1700mAh battery [10].
The honest way to present that is a range, with each figure attached to its source, rather than a single headline number. Charge time should stay tied to the listing that states it, too. That listing gives about two hours for a full charge over USB-C or on a wireless pad [10].
Practically, this matters most if you already run close to empty on a long day out. If a normal charge covers your sessions, the extra draw from a 3DXL is unlikely to change your routine.
- Measured drain: roughly 3 to 4 percent of the battery per heavy session with a 3DXL fitted.
- Why it happens: more heated surface area and larger loads both draw current.
- Puffco support page: about 30 heating cycles from a full charge.
- Retailer comparison guide: roughly 30 to 35 sessions per charge, depending on temperature.
- Treehouse listing for the Peak Pro 3DXL eRig: roughly 40 sessions from a 1700mAh battery.
- Charge time: about two hours on the eRig listing, over USB-C or wirelessly.
Does the 3DXL chamber fit every Peak Pro?
Puffco states that the 3DXL chamber is compatible with all Peak Pro models [1]. Reviewers confirm it on both the first-generation Peak Pro and the later Peak Pro. They note that a firmware update unlocks the app’s vapor control features on older units [5]. For the Peak Pro family, the answer is yes across the board.
The hard stop is the New Peak. It uses its own smaller 3D chamber, which is not interchangeable with Peak Pro chambers. The device also has no Bluetooth or app control at all [7]. A 3DXL will not go on a New Peak, and no firmware update changes that.
The confusion has a cause: chamber width and the connection stayed consistent across Peak Pro generations even as depth changed [8]. Two chambers can look like close relatives and still not swap, because the difference lives in the depth and the electronics rather than the outline.
Caps carry their own rules. The included XL Joystick cap is only compatible with the 3DXL chamber, so it is not a drop-in swap onto a standard 3D chamber [1]. Most 3DXL joystick caps are made for the 3DXL, and 3DXL joysticks do not fit the New Peak’s shallower chamber [8]. The one documented way to change cap style is to swap the 3DXL’s silicone tether for an Oculus or ball-cap tether [8].
The safe way to check is to look at the device itself rather than the product name on a receipt. If the base supports Bluetooth and the app, it is a Peak Pro. If it runs from four built-in presets with no app, it is a New Peak, and the 3DXL is not for it.
- All Peak Pro models: compatible, per Puffco, including the first generation.
- Firmware: the update is required, and reviewers needed it before the chamber worked.
- New Peak: not compatible, because it uses its own smaller 3D chamber.
- App control: the New Peak has no Bluetooth, so it cannot run XL Vapor Mode either.
- Chamber footprint: unchanged across Peak Pro generations even as depth increased.
- XL Joystick cap: fits the 3DXL chamber only, and 3DXL joysticks do not fit the New Peak.
- Tether swap: the 3DXL tether accepts an Oculus or ball-cap tether if you prefer another cap style.

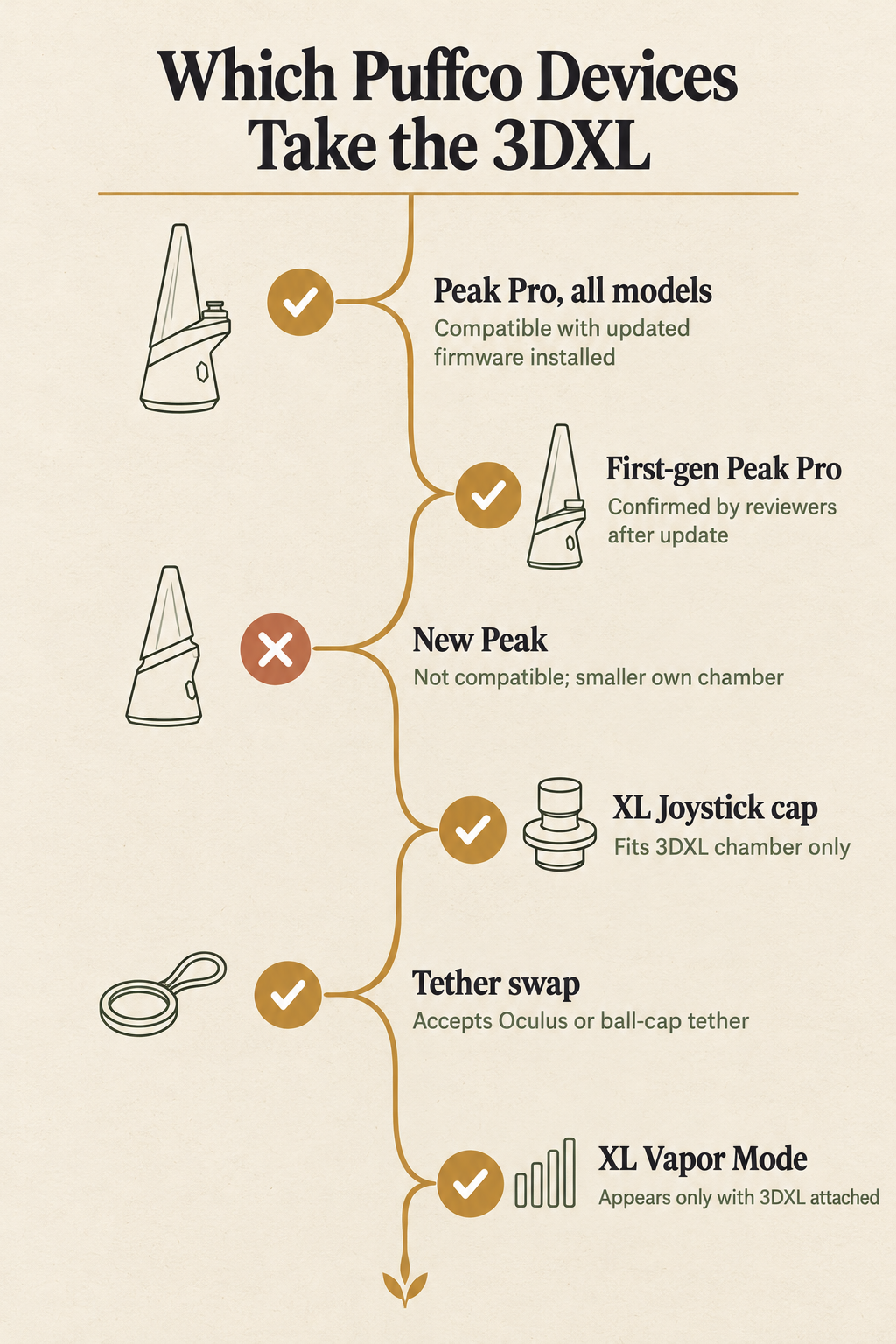

| Device or part | Takes the 3DXL? | What to know |
|---|---|---|
| Peak Pro, all models | Yes | Updated firmware required |
| First-generation Peak Pro | Yes | Firmware update unlocks app vapor control |
| New Peak | No | Uses its own smaller 3D chamber |
| XL Joystick cap | 3DXL only | Not a drop-in swap onto a standard 3D chamber |
| 3DXL joystick on New Peak | No | New Peak chamber is shallower |
| Tether swap | On the 3DXL | Accepts an Oculus or ball-cap tether |
Do you need a firmware update or the app to run the 3DXL chamber?
Yes to both, and the firmware comes first. Puffco lists updated firmware as a requirement on the product page [1], and reviewers had to update their device before the chamber would work [5]. Plan the update before the first session, rather than discovering the requirement with a chamber already fitted.
XL Vapor Mode is the app feature that only exists when this part is attached. With a standard 3D chamber, the Puffco Connect app offers Standard, High and Max vapor control. Attach a 3DXL and a fourth XL level appears, which Puffco describes as the highest level of vapor production the device can offer [2].
Keep that as a control setting and nothing more. Puffco does not publish temperature values or ramp profiles for each level. Check the manufacturer support page for the current update procedure and settings rather than working from memory or from a video.
The app dependency also sets a hard limit. A device without Bluetooth or app control cannot reach XL Vapor Mode at all, which is one more reason the New Peak is out [7]. If app control is part of why you want the chamber, confirm the base supports it before you buy.
- Update the Peak Pro firmware before fitting the chamber, since the part needs the newer firmware to run.
- Attach the 3DXL chamber and let the device recognise it.
- Open Puffco Connect and confirm a fourth XL level appears next to Standard, High and Max.
- Check that the cap and tether are seated properly before the first session.
- Check the current procedure on the Puffco support page rather than relying on remembered steps.
How do you clean a Puffco 3DXL chamber?
Puffco’s method for the chamber is short. Light cleaning is a dry swab or a swab with 90% or higher isopropyl alcohol. Deep cleaning is a 20-minute submersion in 90% or higher isopropyl alcohol. Water is never used on the chamber at any point [2].
A retailer guide states the same 20-minute soak using 99% isopropyl alcohol [7]. The concentration can differ between guides while the method stays the same, so either figure fits the manufacturer’s approach.
Cadence is guidance rather than a fixed schedule. Puffco suggests a thorough clean each time the battery fully depletes [2]. It also suggests an isopropyl soak whenever the chamber floods or the device returns a rainbow light response. Those two triggers are the practical ones to remember, because they come from the device rather than from a calendar.
Keep the whole routine on the removable chamber. The alcohol method does not extend to the base, the glass attachment or the device body. Let the chamber dry fully before it goes back on.
- Swab the chamber after use, dry or with 90% or higher isopropyl alcohol.
- For deep cleaning, submerge the chamber in 90% or higher isopropyl alcohol for 20 minutes.
- Let the chamber dry completely before refitting it to the base.
- Clean thoroughly each time the battery fully depletes.
- Soak after a flood or after the device returns a rainbow light response.
- Never use water on the chamber, and keep alcohol off the base, glass and device body.
Should you buy the chamber on its own or a Peak Pro kit that includes it?
Start with the history, because it explains the used and open-box market. The 3DXL debuted in August 2023 at 125 dollars [6]. Puffco later moved to shipping the 3DXL as standard equipment on Peak Pro kits [5]. That means plenty of Peak Pros already have the larger chamber in the box, so the first question is which chamber yours shipped with.
Current options at Treehouse Lifestyle, from the catalog snapshot dated October 31, 2026: the standalone Puffco 3DXL Chamber at 100 dollars, in stock [9]. The Peak Pro 3DXL Chamber Smart eRig is 420 dollars and also in stock [10]. The eRig plus travel bag bundle at 614 dollars was out of stock in that snapshot.
Frame the choice as bundle against upgrade, rather than better against worse. If you already own a Peak Pro with the standard 3D chamber, the standalone chamber is the only piece you need. If you are buying the device anyway, a kit with the bigger bowl saves you buying the part twice.
The warranty is the same either way: six months under the Puffco limited warranty on the chamber [1]. Keep the proof of purchase. The chamber is sold both on its own and as part of a kit, and the receipt is what ties coverage to your purchase.
Finally, confirm the details at checkout rather than trusting a snapshot. Prices, stock, finish and kit contents all change, and a guide written on one date cannot promise what is on the shelf today.
- Check the box first: confirm which chamber your Peak Pro shipped with before buying an upgrade you may already own.
- Standalone upgrade: the 3DXL chamber on its own is the right path if you already have a Peak Pro with the standard 3D chamber.
- Full device: a Peak Pro kit that includes the 3DXL is the simpler path if you are buying hardware anyway.
- Bundle availability: the eRig plus travel bag bundle was listed out of stock in the snapshot.
- Warranty: six months of limited coverage on the chamber, so keep the receipt.
- At checkout: confirm current price, stock, finish and what the kit actually contains.
| Option | What you get | Listed in the snapshot |
|---|---|---|
| Standalone 3DXL chamber | Chamber plus XL Joystick cap | 100 dollars, in stock |
| Peak Pro 3DXL Chamber Smart eRig | Complete device with the 3DXL chamber | 420 dollars, in stock |
| eRig plus travel bag bundle | Device, chamber and travel bag | 614 dollars, out of stock |
Frequently Asked Questions
Is the 3DXL chamber the same part as the standard Peak Pro 3D chamber?
No. It is a larger chamber for the same device. Puffco rates the 3DXL bowl as 78% larger than the standard 3D chamber, and reviewers describe the added capacity as depth rather than width [1][4]. The footprint and connection stayed the same across Peak Pro generations, but the 3DXL ships with its own XL Joystick cap [8].
Will a 3DXL chamber fit my Peak Pro?
Can you use a 3DXL chamber on the New Peak or the Pivot?
Not on the New Peak. It uses its own smaller 3D chamber that is not interchangeable with Peak Pro chambers, and its shallower chamber also rules out 3DXL joystick caps [7][8]. This guide covers Peak Pro and New Peak only, so check the manufacturer listing for your exact device before buying for any other model.
Does Puffco publish a gram capacity for the 3DXL chamber?
What does XL Vapor Mode add in the Puffco Connect app?
How long is the 3DXL chamber covered under warranty?
Puffco lists the chamber under a 6-month limited warranty [1]. Keep your proof of purchase and check the current terms before relying on coverage. The chamber is sold both on its own and as part of a Peak Pro kit.
How do you decide if the 3DXL chamber is right for your Peak Pro?
Work through it in order. Confirm your device is a Peak Pro rather than a New Peak. Check which chamber your kit shipped with. Update the firmware if you are adding one, then match the chamber to how much you load at a time. If you usually load small amounts, the standard 3D chamber is the closer match and costs you nothing extra.
If you load larger amounts, the standalone chamber is the straightforward upgrade. A kit that already includes it is the simpler buy if the device is new to you. Either way, the practical checks are cap compatibility, the battery cadence you can realistically expect, and the six-month warranty on the part.
When you are ready to compare, browse the dab rigs collection alongside our Puffco accessories, and confirm current pricing, stock and finish at checkout. Free shipping on orders $150+ applies if your order lands above that line.
